9 Ton Excavator with Great Power
Combining mobility and excavation capability, YUFAN™ YFT90 excavator can handle heavier tasks than the 3-5 ton mini excavators, and is easier to operate in narrow construction sites than 15 ton excavators.
Equipped with dual hydraulic cylinders, this midi excavator has greater power and stronger performance. It is ideal equipment for excavation, trenching, landscaping and demolition, etc.
* Powerful Cummins Engine: 55kW high power, stable and reliable.
* Heavy-Duty Digging Performance: 58KN strong digging force, high efficiency.
* Large Bucket Capacity: 0.4m3 bucket for higher working efficiency.
General Specifications
Key Specifications You Care About
- Specification
- Working range
- Machine size
| Specification | |
|---|---|
| Bucket Capacity (m³) | 0.4 |
| Swing Speed (rpm) | 0–12 |
| Gradeability (°) | 35 |
| Max. Bucket Digging Force (kN) | 58 |
| Max. Arm Digging Force (kN) | 40 |
| Engine Model | QSF2.8 |
| Power/revolution speed (kW/rpm) | 53/2200 |
| System Pressure (MPa) | 27.5 |
| Working range | |
|---|---|
| Max. Digging Height (mm) | 7050 |
| Max. Dumping Height (mm) | 5188 |
| Max. Digging Depth (mm) | 4015 |
| Max. Vertical Digging Depth (mm) | 3550 |
| Max. Digging Radius (mm) | 6540 |
| Min. Swing Radius (mm) | 2140 |
| Max. Dozer Blade Lifting Distance (mm) | 370 |
| Max. Dozer Blade Cutting Distance (mm) | 344 |
| Machine size | |
|---|---|
| Dimension (Length×Width×Height) (mm) | 6529×2215×2630 |
| Cabin Height (mm) | 2630 |
| Axle Base (mm) | 1745 |
| Wheel(track) Distance (mm) | 1750 |
| Minimum ground clearance (mm) | 375 |
| Tail Swing Radius (mm) | 1929 |
9 Ton Excavators Similar Models
Engine Yanmar 4TNV94 Engine power 42.4kw Max digging height 7023mm Max dumping height 5195mm Max digging depth 3898mm Max vertical digging 2968mm Max digging radius 6182mm
Engine Yanmar 4TNV98T Engine power 54.3kw Max digging height 7165mm Max dumping height 5065mm Max digging depth 4038mm Max vertical digging 3505mm Max excavating 6330mm
Engine YUCHAI YC4DK100 Engine power 74kw@2200rpm Max loading distance 8300mm Max discharge H 5850mm Max digging depth 4330mm Max digging radius 7580mm Min swing radius 2160mm
9 Tonne Excavator
>>Power & Performance
▲ This 9 ton digger (YFT90) is an economic type excavator. It matches the CUMMINS engine with strong power, low noise and oil consumption and environment protection.
▲ Fitted imported brand main pump and valves.
▲ Adopted imported driving motor and swing motor.
▲ Adopted hydraulic pilot servo operation system and hydraulic oil radiator, ensuring the machine has high working efficiency.
▲ The breaking pipeline equipped improves working performance.
9 Tonne Excavator
>>Comfort & Durability
▲ The professional structural parts and working mechanisms ensure the machine has reliability and durability.
▲ Installed luxury full seal cabin with A/C and LCD display and LED lights etc.
▲ The humanized design ensures the machine comfortable operation and convenient maintenance.
Why Contractors Choose YUFAN's 9 Ton Excavator
Adopt global brand engine – American Cummins QSF2.8 engine, meet Stage V emission standards
Operation is more smoothly and responsively, operator can have an effortless operation.
450 mm wide steel tracks. Improved stability on rough terrain. Better durability.
Equipped with pipeline protection system, preventing sudden boom drop in case of hydraulic hose failure
Air-suspended seat with slide adjustment, LCD display, one-key start, bluetooth speaker and electro-hydraulic control Joysticks
How It Compares with Major Brands
Comparing the global premium brands like Kubota, CAT and Volvo, YUFAN 9 ton mini excavator stands out as the cost effective choice, because we deliver both similar digging force and lower purchase cost!
If you want high level performance, reliable operation in tough environments and smarter spending, remember YUFAN is your best choice!

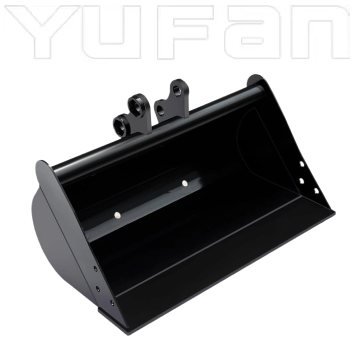

9 Tonne Digger Related Attachments
Frequently Asked Questions
The load lifting capability of the 9 ton digger is affected by the operation radius. The following is YUFAN’s excavator 9 ton’s safe lifting capabilities.
| Operation Radius | Lifting Capacity (Front) (kg) | Lifting Capacity (Side) (kg) |
| Min radius≈2.1m | 4500–5000 | 4000–4500 |
| 3m (Common operating conditions) | 3200–3500 | 2900–3200 |
| 4.5m | 2600–2900 | 2300–2600 |
| 6m (Close to the maximum excavation radius) | 2000–2300 | 1800–2100 |
If you are planning to purchase an 8 to 9 ton excavator, what you should focus on is its performance in heavy-load operations under outdoor conditions, rather than if it is flexible as a 4-ton excavator. The best 8 to 9 ton excavator should have below features:
▪️Sturdy structure
▪️Strong digging force
▪️Low failure rate
▪️Comfortable operation
▪️Good Stability
▪️Fast response speed of the manufacturer’s service
YUFAN 9 ton mini excavator in China balances performance, durability and return on investment. We produce the best 9 ton excavator!
8 and 9 ton excavators are mainly used in outdoor working conditions, such as infrastructure construction in towns and villages, road repair, large-scale site leveling, and heavy-duty material handling.
