6 Ton Excavator Enhance Your Project Performance

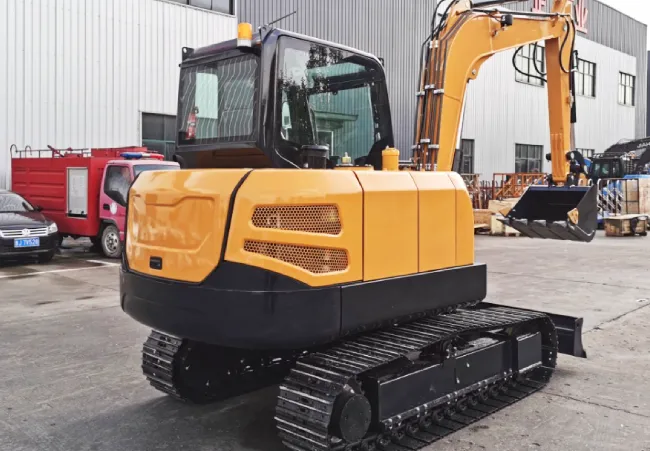

YUFAN 6 ton excavator YFT60 is a compact and lightweight design. It has an operating weight of 5800-6000kg. With Yanmar engine offers power of 36.2-46.3kW.
YUFAN 6 ton excavator is an optimal choice among its larger or smaller counterparts. It’s well suited for various tasks. Easily navigate through different kinds of working environments. YFT60 is fuel-efficient and cost-effective over time. Offering flexibility with a good balance of power and agility to handle your job needs.
Commonly seen in material handling, road construction, quarry, storm cleanup, pipelaying, demolition, utility work, and snow removal.
YUFAN excavators are ISO and CE-certified. YFT60 meets the EPA and Euro V emission standards.
Key Specifications
6 Ton Excavator Detailed Specifications
Engine Yanmar Power 36.2-46.3kW Bucket capacity 0.22m³ Fuel tank 100L Travel speed 4.2km/2.2h Gradeability 70% Excavating force 38.5kn ISO Boom length 1630mm Arm length 3000mm Ground pressure 33.5KPa Overall length 5960mm Overall width 1960mm Total height 2690mm Ground clearance 700mm Turning radius 1700mm Track gnd contact 2000mm Track length 2560mm Track gauge 1560mm Track width 1960mm Rotary platform w 1906mm Max. digging H 5750mm Max. dumping H 3980mm Max. digging D 3860mm Vertical digging D 3040mm Max. excavating 6170mm Min.turing radius 2380mm Max H at min TR 4395mm Center to rear end 1700mm Counterweigth H 1685mm Ground contact L 3370mm
Model Comparison | YUFAN 6-Ton & 6.5-Ton Crawler Series
At YUFAN, we balance engineering precision with regional job site requirements. Below is the verified technical comparison between our standard agile YFT60 and the premium upgraded YFT65 series to help guide your fleet sourcing decisions.
| Core Specifications | YUFAN YFT60 (Standard Agile) | YUFAN YFT65 (Premium Upgraded) |
|---|---|---|
| Engine Model | Yanmar | 4TNV94 |
| Engine Power / Speed | 36.2 – 46.3 kW | 35.9 kW @ 2,200 rpm |
| Emission Certification | Standard Regional Compliance | Kubota / Yanmar Stage V Certified |
| Bucket Capacity | 0.22 m³ | 0.21 m³ |
| System Pressure | Standard Operating Pressure | 28 MPa (Heavy-Duty System) |
| Max. Bucket Digging Force | 38.5 kN | 48 kN (High Breakout Power) |
| Max. Arm Digging Force | Standard Arm Force | 35 kN |
| Max. Digging Height | 5,750 mm | 5,928 mm |
| Max. Dumping Height | 3,980 mm | 4,228 mm (High Truck Loading) |
| Max. Digging Depth | 3,860 mm | 4,159 mm |
| Max. Vertical Digging Depth | 3,040 mm | 3,458 mm |
| Max. Digging Radius | 6,170 mm | 6,162 mm |
| Min. Swing Radius | 2,380 mm | 2,389 mm |
| Dimensions (L × W × H) | 5960 × 1960 × 2690 mm | 5802 × 1960 × 2420 mm |
| Cabin Height | 2,690 mm | 2,420 mm |
| Axle Base | 1,560 mm (Track distance) | 2,020 mm |
| Wheel (Track) Distance | 1,560 mm | 1,560 mm |
| Minimum Ground Clearance | 700 mm (Ground clearance spec) | 380 mm |
| Tail Swing Radius | 1,700 mm (Turning radius spec) | 1,520 mm |
| Fuel Tank Capacity | 100 L | 87 L (Large Fuel Tank Features) |
Exploring the Feature: 6 Ton Excavator
6 ton excavator provides strong hydraulic and engine power for tough digging and heavy lifting. Featuring a Yanmar engine with 36.2-46.3kW power. It can dig up to a depth of 3860mm.
The cab provides: clear visibility, more head and legroom, and ergonomic controls to reduce noise and vibration. Available to customize: rearview camera, automatic heating and AC, low-effort joystick.

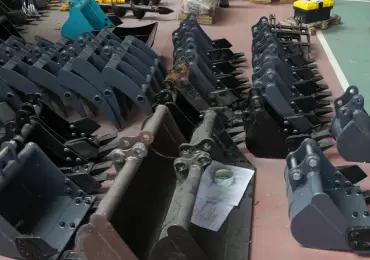

Your YUFAN excavator is like the base. Your attachments determine how much work you get and how much money your machine can make.

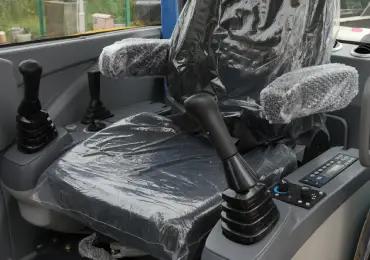

YFT60 features a low-effort joystick which responds quickly to operator output. It helps the operator to work longer with less fatigue. Precise movement with low effort.
The full-colour standard display gives you access to information and any issues it might have. Operate your excavator efficiently and fix any issues right away.
See better with the rear camera on YFT60. It gives a clear view from the operator’s seat, offering an extra perspective for certain tasks. It’s placed high to avoid hitting.
Pick A YFT60 with an extendable arm if your jobs need more reach. It can stretch up to 75cm when necessary and return to its regular position for the best arm force and lifting.
Adjust your YFT60 with the angle blade option. You can tile it up to 25 degrees left or right to find the best angle. It makes backfilling and grading easier and faster.
Order Your 6 Ton Excavator from China
Model name: YFT60.
Lead time: 40-50 days.
OEM custom features: Support.
Warranty: One-year standard warranty.
Shipping port: Qingdao.
MOQ: 1 unit.
Payment: T/T, LC.
Color: Yellow, blue, orange.
Choose Us for Reliable Machine and Service

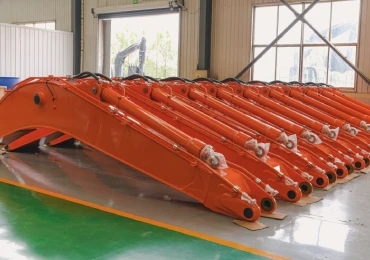

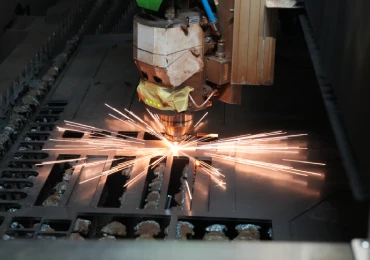

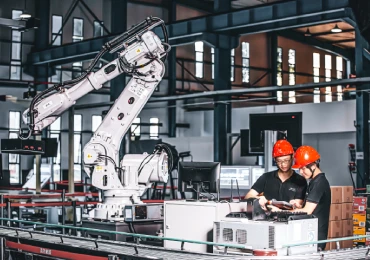

-YUFAN carries out strict quality controls. We produce durable machines and maintain consistent quality.
-Our experienced sales team offers quality inspection reports for both samples and stock. They can also provide guidance on shipping logistics.
-All YUFAN machines come with a one-year warranty covering 3000 hours of use for all machine types.
-We supply quality machines to over 30 countries. Our annual capacity is around 7,500-8,000 units.
Secure Payment Options
We offer a variety of secure payment channels for you to choose from. You can make payments conveniently and safely using the method that best suits your preferences and needs, such as T/T, LC, etc.
YUFAN has a team of customer support professionals ready to assist you with any questions or concerns you may have. They are knowledgeable and dedicated to providing you with excellent service.

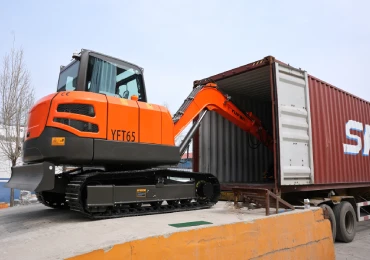

Fast Delivery Direct from Factory
At YUFAN, we send our excavators straight from the factory. This makes sure you get your excavator faster, without waiting a long time. Also, we skip storing them in other places or using middlemen, to save money for you.
Our easy shipping process ensures you get your excavator fast, so you can focus on your construction work without any extra waiting or costs.

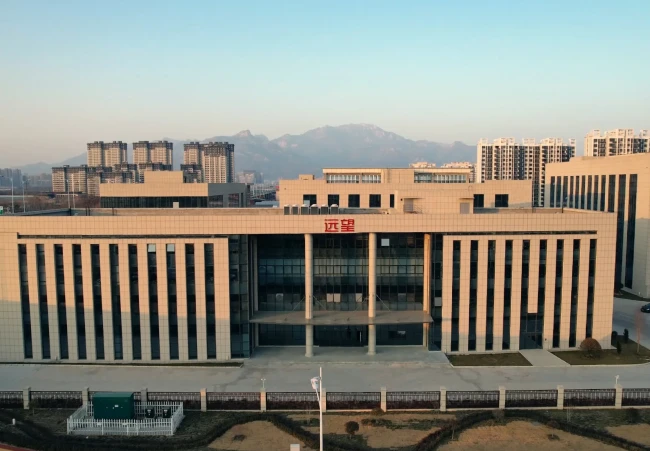

State-Support from Government
YUFAN Machinery is under the state-owned organization YuanWang Group.
We’re based in Hanyu Finance Valley, Jinan, Shandong province. YUFAN is a new machinery brand with government support and investment. We have set up three manufacturing bases for excavators, loaders, and others.
We have also obtained an ISO 9001 quality management system and CE EU quality certification. A majority of our machines can be customized to meet EPA or Euro V emission standards.
Looking for reliable excavators from China? Reach out to YUFAN today to discover more benefits and advantages!
YUFAN After-Sales Service Commitment
At YUFAN, we stand behind the quality of our machines with a one-year or 2,000-hour warranty, whichever comes first. If any damage occurs during the warranty period due to non-human causes, we will provide free replacement parts, excluding consumables and wear parts.
Even after the warranty expires, we continue to support our customers — any replacement parts needed will be offered at cost price, with no extra charges.
We maintain a well-stocked inventory of spare parts, so you never have to worry about delays or shortages in the future. With YUFAN, you’re not just buying a machine — you’re gaining a reliable partner.
Other Types of Machines Made by YUFAN
Frequently Asked Q&As
Weight class: 6 tons.
Model name: YFT60.
Lifting capacity: 2000 kg up and down, based on the lifting point.
A 6-ton excavator is commonly used for digging into larger depths than mini and small excavators. It can dig up to 3860mm and have a dumping height of 3980mm.
YUFAN provides a 6-ton excavator and similar tonnage: YFT65H and YFT80.
Different jobs require different functions from an excavator. A big one can move a lot of materials fast, but a smaller one might be better for small spaces like a home or garden.
1. Tail swing. Zero or minimal tail swing for more rotation in tight spots. Conventional tail swing machines are better for open areas.
2. Retractable undercarriage. Fits through tight entryways when retracted. Maintains digging and lifting power when extended.
3. Arm design option. Standard arms are strong and lift effectively. Long arms provide extended reach and deeper digging without the need to reposition the machine.
4. Pay attention to engine power, dig depth, dig force, and lifting capacity specifications. Start by exploring the full line of YUFAN excavators to find the fit for your needs.
The YUFAN 6 ton excavator has a total width of 1960mm. This compact size allows easy maneuverability and access to confined job sites. Finally making it suitable for various applications.
Clean fuel and drain plugs regularly, and remember to change the oil every 1,000 hours or at the manufacturer’s recommended intervals, usually half to a quart. The propulsive drive gearboxes in excavators are small and easy to forget — but expensive to replace.
YUFAN 6 ton excavator shows our excellence in compact machinery. The 6 ton excavator’s operating weight is 5850kg(12900 lbs).
At YUFAN, we are committed to advancing hydraulic system technology to enhance the efficiency of your tasks. For the protection of hydraulic pipelines, they are fixed to the machine’s boom arm. This setting ensures both your safety and the machine’s integrity.
The hydraulic flow rate typically ranges from 130 to 160 liters per minute. This flow rate guarantees optimal performance for your specific application. Ensuring you achieve outstanding results with the YFT65 hydraulic system.
