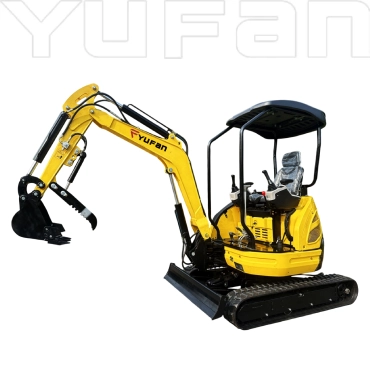

2 Ton Chinese Excavator YFT20
YUFAN is a professional 2 ton excavator supplier in China. With the investment of the local SOE group, we set up factories and brought in modern manufacturing technology. We adopted laser cutting and robot welding to ensure high-efficiency production.
YUFAN 2-ton mini excavator comes in two options: economy and engineering versions. Read YUFAN’s success cases of 2-ton mini excavator used for solar projects.

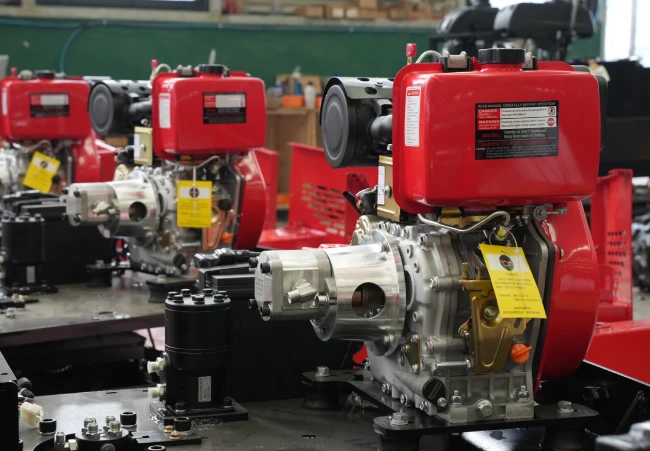

YFT20 2 ton mini excavators can choose either Kubota or Yanmar engines. This model is also equipped with imported hydraulic pumps and pilot controls. These components ensure fast and smooth operation.
> Supporting ODM custom services.
> Featuring safety operation systems.
> Experience factory prices and fast ship-out.
> Except for excavators, we also provide loaders, backhoes, and concrete mixers.
2 Ton Excavator Detailed Specifications
Economy Version
| Item | Specification |
| Engine type | Kubota D902 |
| Power types | vertical, water-cooled, four-stroke |
| Displacement (L) | 0.719 |
| Rated power (kw / rpm) | 14.9/3600 |
| Horsepower (HP) | 20.3 |
| Fuel types | Diesel oil |
| Fuel consumption (g / kwh) | 3.8 |
| Fuel Capacity (L) | 2000 |
| Oil capacity (L) | 0.05 |
| Overall machine size (mm) | 3250*1300*2400 |
| Trace ground length (mm) | 1300 |
| Trace width (mm) | 230 |
| Max maximum depth (mm) | 2200 |
| Unload maximum height (mm) | 2300 |
| Excav maximum height (mm) | 3200 |
| Climbing capacity | 30° |
| Walking speed (km/h) | 0-3 |
| Bucket excavation force (kn) | 20 |
Engineering Version
| Specifications | |
| Item | Value |
| Bucket Capacity | 0.07 |
| Swing Speed | 0-9 |
| Gradeability | 35 |
| Max. Bucket Digging Force | 18 |
| Max. Arm Digging Force | 11 |
| Engine Model | KUBOTA D1105 |
| Power/revolution speed | 14/2200 |
| Tire Model | – |
| System Pressure | 21.5 |
| Working range | |
| Max. Digging Height | 3570 |
| Max. Dumping Height | 2440 |
| Max. Digging Depth | 2400 |
| Max. Vertical Digging Depth | 2025 |
| Max. Digging Radius | 4040 |
| Min. Swing Radius | 1610 |
| Max. Dozer Blade Lifting Distance | 240 |
| Max. Dozer Blade Cutting Distance | 270 |
| Machine size | |
| Total Length | 3555 |
| Total Width | 990/1300 |
| Total Height | 2330 |
| Cabin Height | 2290 |
| Axle Base | 1230 |
| Minimum ground clearance | 150 |
| Tail Swing Radius | 650 |
Application & Suitable Scenarios

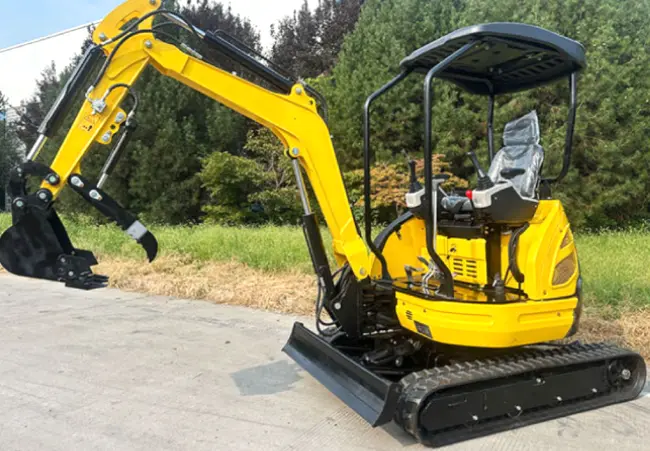

YFT20 Economy

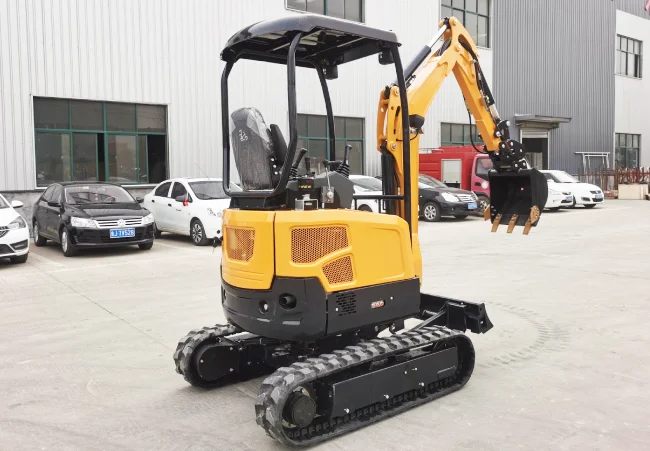

YFT20 Engineering
Similar Models Comparison
Engine Koop/Briggs & Stratton Engine horsepower 7.6kw Max digging depth 1700mm Climbing gradient 30° Bucket digging force 11.5KN
Engine Briggs & Stratton Laidong/Kubota Engine horsepower 10.2kw Max digging depth 1900mm Climbing gradient 30° Bucket digging force 12.5KN
Engine Kubota Engine horsepower 11.2kw Max digging depth 2200mm Climbing gradient 30° Bucket digging force 16.5KN
Engine Kubota/Yanmar Engine horsepower 14kw Max digging depth 2250mm Climbing gradient 30° Bucket digging force 16.5KN
Engine Laidong/Yanmar/ Kubota Engine horsepower 15.4kw Max digging depth 2300mm Climbing gradient 30° Bucket digging force 17KN
Engine Laidong/Kubota Engine horsepower 18.2-22.1kw Max digging depth 2500mm Climbing gradient 40° Bucket digging force 18KN
Choose YFT20 for 6 Compelling Reasons

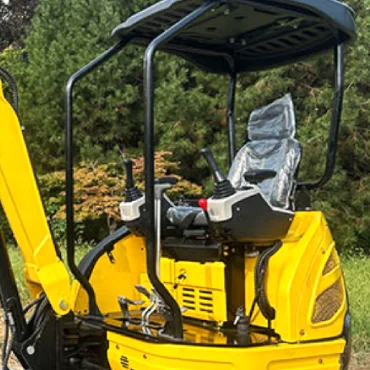

Easy to Operate· Responsive controls and comfortable seats.
· Standard canopy for protection and better view.

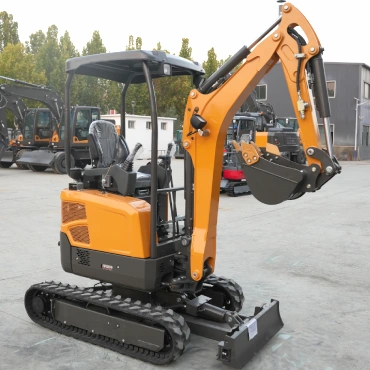

For Confined Spaces· Extendable chassis and rubber tracks.
· Easily access tight spaces and narrow doorways.

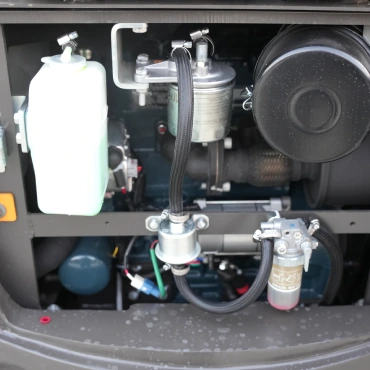

Very Low Noise· Quieter with Kubota engine.
· Highly used in commodity or any other workplace.

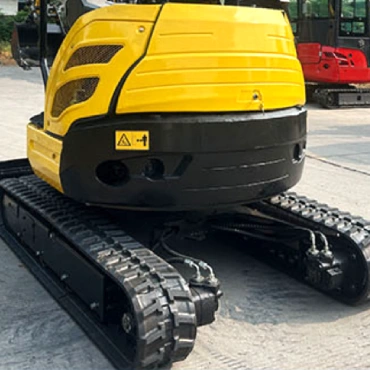

Low Ground Friction· Avoid grinding or scratching surfaces.
· Design to work in many different worksites.

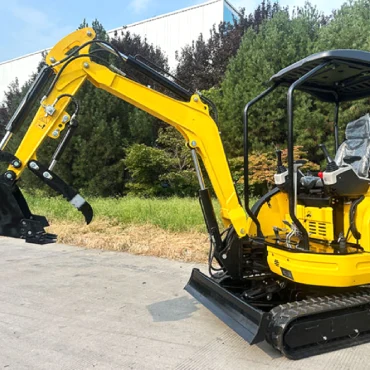

Easy to Transport· Packed in wood box and easy to transport.
· Also fit into a trailer to transport between jobsite.

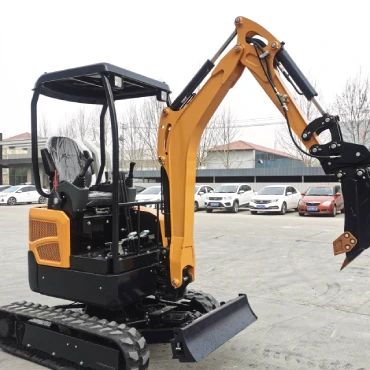

Cost - Effective· Work in a similar way to full-size.
· Cost is relatively lower than other larger sized excavator.
2 Ton Excavator Warranty Policy
YUFAN provides standard and optional warranties for you. These warranties covers the parts but does not include work-site accidents or normal wear and tear.
✅ Standard warranty: 1 year
✅ Optional 2-year warranty
✅ Other special requirements: contact with our sales
✅ Spare parts supply within 24 hours
✅ Complete after-sales guidance
If any parts fail within this time frame, please contact us, and we will arrange for a replacement to be shipped out as soon as possible.
Please note that shipping costs and labor are not included. Once the machine is sold, we do not offer returns or refunds.

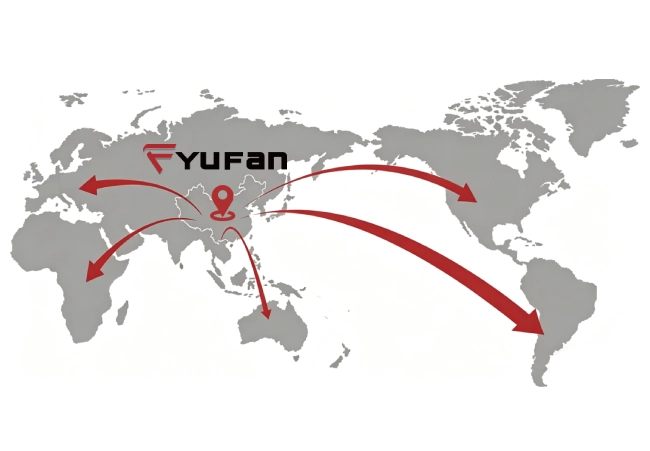

YUFAN'S Shipping
We take great care in assembling, inspecting, and packaging each of our machines. We ensure the safe delivery of your order.
YUFAN provides various shipping terms per your preference. The freight information is public and transparent, no destination fee to your port.
▪️DDP: Delivery to your address (public and transparent freight)
▪️CIF: Delivery to your destination port
▪️FOB: Qingdao Port, China
The production time will be around 15-20 days; your excavators will be carefully prepared for shipment.
Leave the Logistics to YUFAN
Get stressed with the logistics and customs clearance? Don’t worry, YUFAN takes full control of the shipping and customs process for you. Below are what YUFAN will do to ensure your excavator arriving smoothly, without stress.
✅ Complete clearance documents tailored to your country’s requirements (CE & EU Declaration of Conformity, Commercial Invoice, Packing List, BL copy, etc.)
✅ All duties, taxes, and logistics costs are clearly defined upfront. No hidden fees.
✅ We also streamline transportation to reduce unnecessary transfers.
Get More Done with 2 Ton Excavator

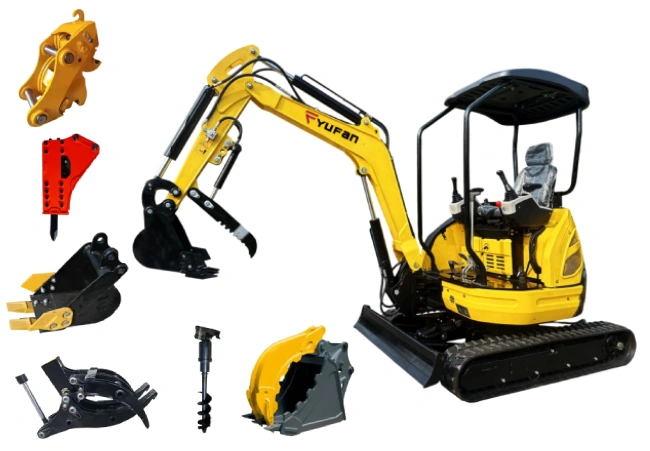

Attachments>>
YUFAN 2 ton mini excavator YFT20 is created to perform at your job site, with plenty of attachment options. From Dig, compact, or load; we have the attachments you need to get more work done!
Excavator Parts>>
YUFAN guarantees that 100% of the parts ordered will be delivered timely within 3-7 days. It’s our responsibility to get your machine running smoothly!
2T Excavator Maintenance and Essential Care Tips
Learn how to take care of your excavator to keep it working well and lasting a long time!
-Regularly clean and lubricate your excavator.
-Inspect your excavator once in a while for any issues.
-Be informed of the proper use and maintenance procedure.
-Check the tracks for wear and tear, and replace them if needed.
How Deep can a Mini Excavator Dig?
The size of the machines determines the digging depth.
> Backhoes are suitable for standard projects. Reaching a depth of 12-16 feet.
> Mini excavators can reach about 5 feet, 2 inches.
> Hydraulic excavators/mini digging down to 7 to 11 feet, 5 inches. The compact ones dig down to 19 feet, 6 inches, or even 22 feet, 3 inches.
The specific digging depths may vary among models. It’s best to verify the specifications with the YUFAN team first!
Proven Performance: Customers Share Their Experience
Russian Customer
American Customer
FAQs
The YUFAN YFT20 is equipped with the following configurations:
– Engine: It features a EPA and Euro V compliant diesel engine.
– Control System: The YFT20 uses a hydraulic control system for precise performance.
– Operator Comfort: It includes a driver’s cab rearview mirror, heater, and adjustable height glass. As a result, improved visibility and operator comfort.
– Customization: You can choose the machine body color and engine brand according to your preference.
– Versatility: The YFT20 has an extendable chassis to adapt to various working conditions. And its track width is adjustable for different terrains.
– Safety Features: It has a safety belt, armrest, and a working light to enhance operator safety and convenience.
– Main Arm Range: The main boom and arm of the YFT20 offers a wide swing angle for flexible and efficient operation.
This set of configurations ensures that YFT20 provides a versatile solution for various applications. If you have more requirements or questions about other features, please feel free to contact our team.
Functionality is one of the advantages of a mini excavator. You can choose from multiple implements based on your operations, such as hydraulic thumb, trenching bucket, quick coupler, auger, broom, and buckets. Jobsite research is necessary before selecting the correct tools.
YUFAN 2 ton mini excavators are extremely versatile and specially designed for confined spaces. During the operation on the job site, it doesn’t cause noise pollution. Thus we receive minimum complaints. Mini excavators are highly effective. These machines are capable of performing a large number of tasks by changing the implements.
Mini excavators are relatively easy to operate compared with large excavators. Due to their lightweight, you can easily transfer them to certain locations without any trouble.
A YUFAN 2 ton excavator can perform various tasks including digging, trenching, leveling, lifting, crushing, and dozing. It is widely used in minor engineering constructions such as gardens, farmland, and urban construction.
Normally, your mini excavators are used in drilling, digging, trenching, leveling, and grading. You can dig a hole of roughly 7-8 feet deep with an operating weight of 3000-3999 lbs, 1-2 tons.
The YFT20 excavator’s swing boom allows hydraulic movement within a specific angle range. It is designed for offset digging and trenching parallel to the machine’s tracks.
The typical swing speed falls between 9.2 and 11 RPM, with a reference operating angle of 50° to 60° to the right and 60° to 80° to the left.
