7.5 Ton Excavator from YUFAN Excavator Factory
A 7-ton to 7.5 ton small excavator is one of the more popular types of machine on the market. As a top choice for many customers, the 7.5 ton digger is being used in many places. For example, farming, landscaping, and building roads and bridges.
The YUFAN 7.5 ton excavator adopts an upgraded hydraulic system. It fully utilizes the engine’s power, reduces fuel consumption, and improves efficiency. The 7.5 ton excavator also has a reinforced undercarriage, which is built for stability. It can handle slightly heavier tasks, with extended service life.
At YUFAN, we can equip your excavator with different working devices. So as to complete as many tasks as you need. Owning one machine but getting more work done!
* High-PressureHydraulic System:27MPa system pressure for precise operation.
* Heavy-Duty Digging Performance:56KN maximum digging force, highly efficient operation.
* Large Fuel Tank: 120L large capacity for longer working endurance.
7.5 Ton Excavator Specifications
- Crawler Type
- Wheeled Type
| Specification | |
|---|---|
| Bucket Capacity (m³) | 0.28 |
| Swing Speed (rpm) | 0–11 |
| Gradeability (°) | 35 |
| Max. Bucket Digging Force (kN) | 56 |
| Max. Arm Digging Force (kN) | 38 |
| Engine Model | 4TNV94 |
| Power/revolution speed (kW/rpm) | 35.9/2100 |
| System Pressure (MPa) | 27 |
| Working range | |
|---|---|
| Max. Digging Height (mm) | 7023 |
| Max. Dumping Height (mm) | 5195 |
| Max. Digging Depth (mm) | 3898 |
| Max. Vertical Digging Depth (mm) | 2968 |
| Max. Digging Radius (mm) | 6182 |
| Min. Swing Radius (mm) | 1740 |
| Max. Dozer Blade Lifting Distance (mm) | 382 |
| Max. Dozer Blade Cutting Distance (mm) | 332 |
| Machine size | |
|---|---|
| Dimension (Length×Width×Height) (mm) | 6121x2216x2672 |
| Cabin Height (mm) | 2672 |
| Axle Base (mm) | 2209 |
| Wheel(track) Distance (mm) | 1745 |
| Minimum ground clearance (mm) | 375 |
| Tail Swing Radius (mm) | 1797 |
| Specification | |
|---|---|
| Bucket Capacity (m³) | 0.3 |
| Swing Speed (rpm) | 0–12 |
| Gradeability (°) | 25 |
| Max. Bucket Digging Force (kN) | 45 |
| Max. Arm Digging Force (kN) | 36 |
| Engine Model | YCF3065–T480 |
| Power/revolution speed (kW/rpm) | 48/2200 |
| Tire Model | 8.25–16 |
| System Pressure (MPa) | 24 |
| Working range | |
|---|---|
| Max. Digging Height (mm) | 6297 |
| Max. Dumping Height (mm) | 4677 |
| Max. Digging Depth (mm) | 3612 |
| Max. Vertical Digging Depth (mm) | 2460 |
| Max. Digging Radius (mm) | 6248 |
| Min. Swing Radius (mm) | 2347 |
| Max. Dozer Blade Lifting Distance (mm) | 310 |
| Max. Dozer Blade Cutting Distance (mm) | 132 |
| Machine size | |
|---|---|
| Dimension (Length×Width×Height) (mm) | 6260×2044×2816 |
| Cabin Height (mm) | 2816 |
| Axle Base (mm) | 2400 |
| Wheel(track) Distance (mm) | 1536 |
| Minimum ground clearance (mm) | 354 |
| Tail Swing Radius (mm) | 2000 |
Excavator Models Comparison
Engine Yanmar Engine power 36.2-46.3kW Bucket capacity 0.22m³ Max. travel speed 4.2km/2.2h Gradeability 70° Max. dumping h 3980mm Max. digging d 3860mm Vertical digging d 3040mm Digging force 38.5kN
Engine Kubota V2607 Engine power 42.4kW Bucket capacity 0.21m³ Max. travel speed 2.4km/h Gradeability 35° Max. dumping height 3845mm Max. digging depth 3808mm Digging force/bucket 48kN Digging force/arm 35kN
Engine Kubota Engine power 42.4kW/2000rdp Bucket capacity 0.21m³ Max. travel speed 2.4km/2.7h Gradeability 35° Max. dumping h 3845mm Max. digging d 3808mm Arm digging force 35kN Bucket digging force 48kN
Engine Yanmar Engine power 54.3kW/2200rdp Bucket capacity 0.34m³ Max. travel speed 5.1km/2.7h Gradeability 70° Max. dumping h 5065mm Max. digging d 4038mm Vertical digging d 3505mm Digging force 60kN

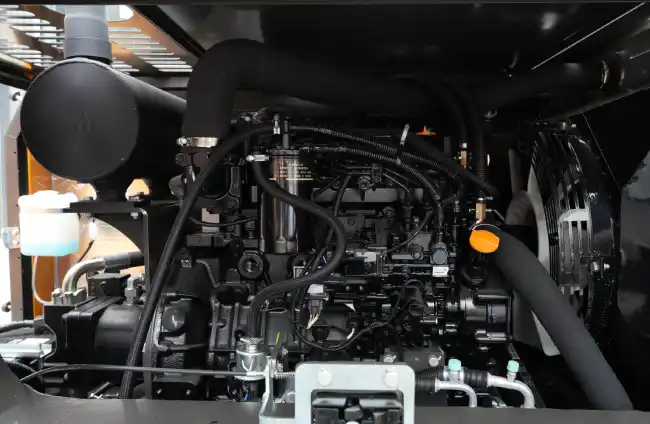

Reliable Engines with Global Support
YUFAN excavators are equipped with high-quality engines from globally recognized brands such as Briggs & Stratton, Koop, Yanmar, and Kubota, selected based on model and power requirements. These engine brands have wide global service networks, so sourcing replacement parts locally is convenient and worry-free.
To meet varying emission standards across different countries and regions, we offer flexible engine options. Currently, we can supply excavators that comply with both EU Stage V and EPA emission standards, ensuring smooth import and operation in regulated markets.
7.5 Ton Excavator with Factory Direct Supply
YUFAN is a professional small excavator manufacturer in China. We design and produce all excavators in our own factories. Thus, all equipment will be shipped out immediately after production and quality checks. This helps in saving costs for you.
Modern Production Line for 7.5 Ton Excavator
We have a modern production line for 7-ton to 7.5-ton excavators. We conduct multiple tests throughout production to check the functions and responsive capability.
Manufacturing procedures: laser cutting to fabricate parts, automatic welding and assembly, testing, painting, final check, and dispatch.
Pre-sale and After-sale for Every Unit and Parts
We offer pre-sale and after-sale services. We respond promptly to your inquiries. You can share your concerns with us, and we’re always here to support you, with possible solutions standing by.
*100% of excavator parts, components, and attachments shipped out within 3 to 7 days.
Short Lead time and Fast Delivery
Standard models take a shorter period to produce, with a lead time of about 2 weeks. However, if you’re looking for an excavator with customized features, it might take a bit longer. Rest assured, we maintain sufficient stocks for customization purposes. The lead time could be 3 to 6 months.
*Payment options that we accept: T/T, LC, and PayPal.
Matching Attachments for 7.5 Tonne Excavator
A small excavator, like one that weighs 7 to 7.5 tons, can handle slightly larger projects well. Compared to a mini excavator, which weighs 0.8 to 3.5 tons and can handle most household tasks. A slightly larger excavator can move more materials at once, saving you time and effort. A 7.5-ton excavator might seem a little bigger, but it can still fit into some small spots and carry out tasks efficiently.
Attachment options: Bucket, auger, grapple, hydraulic hammer, trailer, thumb, rake, quick hitch, etc.
We keep sufficient attachment stocks, especially for those most frequently used ones. And we guarantee a fast ship-out within 3-6 days for your attachment order.
Discover More Excavator Models
Frequently Asked Q&As
Compared to the smaller excavators, a 7.5 tonne digger offers amazing benefits. That makes it perfect for more demanding projects.
– Greater digging depth and reach
– Higher lifting capacity and breakout force
7.5 Ton Digger:
Max digging depth 3808mm.
Max dumping height 3845mm.
7.5 ton lifting capacity: max lifting weight 7 tons.
Digging force: 35kN.
Smaller Digger, take a 3.5-ton digger as an example:
Max digging depth 3208mm.
Max dumping height 3406mm.
Lifting capacity: max lifting weight 3 tons.
Digging force: 30.4kN.
