High-end 2 Ton Digger Manufacturer
YUFAN is a leading 2 ton digger manufacturer and supplier. We take every manufacturing process precisely. Through our ODM service, you may customize your own 2 ton mini digger for various tasks.
YUFAN has 5 factory bases in China. We have excellent QA systems and R&D to ensure the 2 tonne digger’s large volume manufacturing. All machines are made with ESG strategy in mind.
- Zero-tail swing design.
- Powerful Kubota Power: Abundant power output and stable operation.
- CE, Euro V, and EPA certified.
- Efficient Excavation Performance:Greater digging depth, higher working efficiency.
- Compact Design: Telescopic tracks with a small tail swing enable easy passage in narrow spaces.
- Our teams will provide after-sales services for your machines.
YUFAN 2 Ton Digger Specifications
- Specification
- Working range
- Machine size
| Specification | |
|---|---|
| Bucket Capacity (m³) | 0.07 |
| Swing Speed (rpm) | 0–9 |
| Gradeability (°) | 35 |
| Max. Bucket Digging Force (kN) | 18 |
| Max. Arm Digging Force (kN) | 11 |
| Engine Model | KUBOTA D1105 |
| Power/revolution speed (kW/rpm) | 14/2200 |
| System Pressure (MPa) | 21.5 |
| Working range | |
|---|---|
| Max. Digging Height (mm) | 3570 |
| Max. Dumping Height (mm) | 2440 |
| Max. Digging Depth (mm) | 2400 |
| Max. Vertical Digging Depth (mm) | 2025 |
| Max. Digging Radius (mm) | 4040 |
| Min. Swing Radius (mm) | 1610 |
| Max. Dozer Blade Lifting Distance (mm) | 240 |
| Max. Dozer Blade Cutting Distance (mm) | 270 |
| Machine size | |
|---|---|
| Total Length (mm) | 3555 |
| Total Width (mm) | 990/1300 |
| Total Height (mm) | 2330 |
| Cabin Height (mm) | 2290 |
| Axle Base (mm) | 1230 |
| Wheel(track) Distance (mm) | 760 |
| Minimum ground clearance (mm) | 150 |
| Tail Swing Radius (mm) | 650 |
YUFAN Solution Package for YFT20H

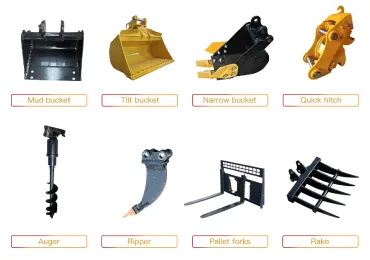

YFT20H is suitable with various attachments. For example,quick coupler, grapple, hammer, auger, snow blade, etc. Each one is tailored to your different applications.
YUFAN is committed to providing excavators with unique designs. You can customize components and functions for your machinery. For example, logo, color, boom, etc.

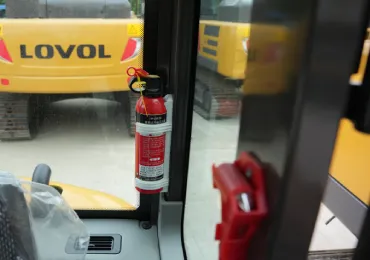

YUFAN keeps safety in mind. You can equip your YFT20H with high-end safety and protection features. For example, the ROPS, FOPS, backup cameras, etc.
YUFAN Supports Your Better Purchasing Experience
Various Payment Choices
YUFAN offers flexible payment options for your 2 ton excavator:
> T/T wire transfer.
> L/C at Sight.
> Western Union.
> PayPal.
> Credit Card.
Shipping Solution
YUFAN has efficient supply chains to deliver your excavator ASAP.
> Supports various shipping methods. For example, DDU, DDP, FOB, etc.
> YFT20 can fit 6 units in a 40ft container.
> Option for complete assembly or split delivery.
What can a 2 ton digger(excavator) do?
A 2 ton digger, also known as a small excavator, is versatile and capable of tasks such as excavation, trenching, landscaping, and material handling. It can dig trenches, foundations, and holes, level terrain, remove vegetation, and handle materials like soil and debris.

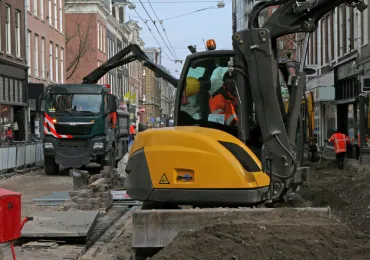

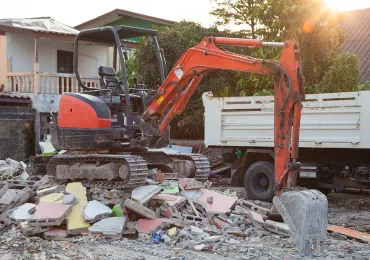

Additionally, it can assist in smaller demolition projects and perform utility work, such as installing underground pipes or conducting maintenance on utility lines. With its compact size and maneuverability, it excels in accessing tight spaces and is ideal for various construction and maintenance projects.
How much does a YUFAN 2 ton digger weigh?
A YUFAN 2 ton digger weighs approximately 4,400 pounds (lbs).
