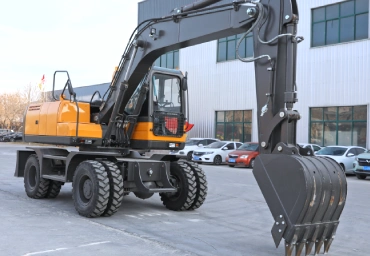

YUFAN Powerful Big Wheel Excavator
Built for large projects. Engineered for profit.
YUFAN YFTW Series – Big wheel excavators are build for large projects, such as road construction and heavy-duty work.
With a powerful hydraulic system and optimized structure, this big wheel excavator helps you move more material in less time and significantly increase your daily output.
This is not just a machine—it’s a solution built to help you earn more, spend less, worry less, and finish faster.
Big Wheel Excavator Delivery
✅ Tons Available: 15 Ton, 18 Ton, 20 Ton, 21.5 Ton
✅ Lead Time: 7-15 business days (stock available)
✅ Product Origin: China
✅ Brand: YUFAN
✅ Model: YFT1800W, YFT2150W
✅ Shipping Port: Qingdao Port
✅ Market Price: PER TONS
✅ Color: yellow/orange/blue/pink/green etc.
✅ MOQ: 1 set
Big Wheel Excavator Popular Models
YFT180W
It uses CUMMINS 6BTAA5.9-C178 engine, 133kw/2000rpm, meeting Stage V, Tier 4 Final emission standards
Korean PNM brand Hydraulic pump, valves and swing motor
Luxury full seal cabin with A/C and LCD display and LED lights etc.
- Engine Brand
- CUMMINS
- Engine Power
- 133kW
- Engine Type
- Diesel with water-cooled, 4-stroke, 6-cylinder
- Travel speed
- 28km/h
- Standard Bucket Capacity
- 0.8m³
- Max. Dig Depth
- 5350mm
- Max. Dump Height
- 6620mm
- Maximum Vertical Digging Depth
- 4850mm
YFT215W
Uses CUMMINS 6BTAA5.9-C205 engine, 153kw/2000rpm, meeting Stage V, Tier 4 Final emission standards.
Hydraulic pilot servo operation system
With broken pipeline system
HS.Code 8429521100 , 100% new , made in China
- Engine Brand
- CUMMINS
- Engine Power
- 153kW
- Engine Type
- Diesel with water-cooled, 4-stroke, 6-cylinder
- Travel Speed
- 28km/h
- Standard Bucket Capacity
- 1m³
- Max. Digging Depth
- 6052mm
- Max. Dumping Height
- 7406mm
- Maximum Vertical Digging Depth
- 5673mm
Big Wheel Excavator Highlights
Reliable Hydraulic System

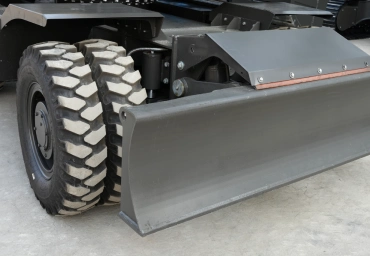

Super Wear-Resistant Tire
Anti-slip thickened
Transverse grooves provides stronger grip
Stable Supporting Leg
It comes with support legs for more stable operation.
Other Features
Optional Cummins engine, with high efficiency and low maintenance costs.
Fully sealed engine compartment, equipped with air conditioning and comfortable seats, making it easy for operators to work.
The special design of separating the engine from the radiation space, with enhanced cooling fans, improves cooling efficiency
Get the Right Machine for Your Project
Factory Strength / About YUFAN
Multiple Configurations, Customized as Your Needs
Explore Our Big Wheel Excavator Attachments
The bucket wheel excavator (BWE) is a huge and heavy excavation equipment. These giant machines are often dozens of meters high and weigh tens of thousands of tons. They are suitable for large-scale earthwork and mining projects.
The small bucket wheel excavators body type is as follows:
▪️Weigh several dozen tons;
▪️The bucket wheel diameter is 1 to 3 meters;
▪️The single bucket volume is of 0.05 to 0.1 cubic meters;
▪️The whole machine is less than 10 meters long and 5 meters high;
▪️The output is several dozen to several hundred cubic meters per hour.
The world’s largest bucket wheel excavator: Bagger 293. Its body type is as follows:
▪️Dimensions: 225 meters long, 96 meters high (about 32 floors), weighing 14,200 tons
▪️Bucket wheel: diameter 21.6 meters, 18 buckets, large single bucket volume, daily processing capacity up to 240,000 cubic meters
▪️Power: total installed power exceeds 16.56 MW, requiring 5 people to operate in coordination; the walking speed is extremely slow (about 0.6 km/h)
▪️Usage: stripping overburden in lignite mines. It was once in Germany and is now in service in a lignite mine in Victoria, Australia.
